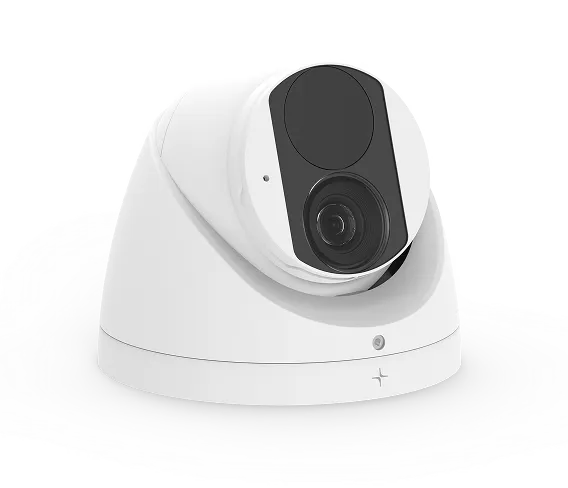

5MP Turret
5MP camera, delivering crisp video and cutting-edge AI.

Camera features
Image sensor
1/2.7", 5.0 megapixel, progressive scan, CMOS
Lens type
Fixed-focal
Aperture
F1.6
Field of view
H: 112.9°
V: 59.1°
D: 121.2°
Shutter speed
1 ~ 1/100000s
IR range
Up to 30m (98ft)
Audio
Supported
Sensor resolution
2880 x 1620px
Focal length
2.8mm
Iris
N/A
Sensor movement
Pan: 0° ~ 360°
Tilt: 0° ~ 80°
Rotate: 0° ~ 360°
Day/Night
IR-cut filter with auto switch (ICR)
WDR
120dB
Interface
Built in microphone
Standard video settings
Compression
Ultra 265, H.265, H.264, MJPEG
Bitrate
128 Kbps ~ 16Mbps
Historical video settings
Dynamic Storage
Flip
Normal/Vertical/Horizontal/180°/ 90°Clockwise/90°Anti-clockwise
Frame rate
30fps
9:16 corridor mode
Supported
Digital noise reduction
2D/3D DNR
White balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Power and network
Power input
DC 12V±25%, PoE (IEEE 802.3af)
Connectivity
1 x RJ45 10M/100M Base-TX Ethernet
1 x Ø 5.5mm coaxial power plug (optional, in case PoE isnt supported)
Compatible integration
ONVIF (Profile S, Profile G, Profile T), API
Power consumption
Max 6.0W
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
