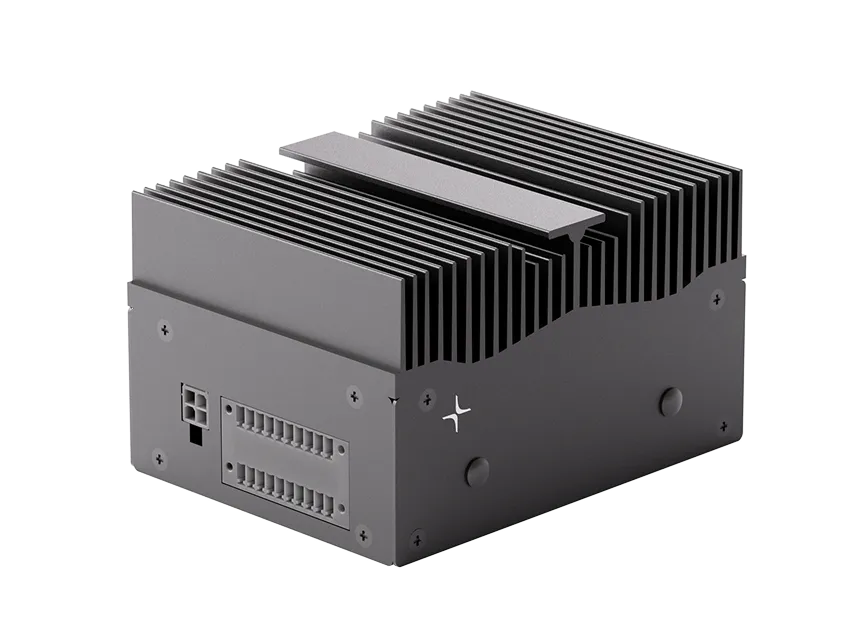

Core
Camera-agnostic AI engine designed to bring advanced AI capabilities to up to 10 cameras.
System
Software
Lumana VMS+
Compression
H.265, H.264
Bandwidth
Steady-state: 100 Kbps/camera
Networking
2x GbE RJ-45
Supported resolutions
Up to 12MP (4000x3000)
AI processing
Real-time
Offline operation
Full operation and recording
Automatic updates
Yes
Input power
100v/240v (50-60Hz)
Expansion header
GPIO, 12C, UART
Storage
Industrial-grade SSD
Storage capability
Up to 90 days local
Up to 365 days in cloud
Mechanical
Dimensions (H×W×L)
74 × 126 × 96mm
(2.9” × 5.0” × 3.8”)
Weight
1.1kg (2.42 lbs)
Environmental
Operating temperature
-25°C ~ 60°C
(-13°F ~ 140°F)
Humidity
40°C @ ≤95% RH
(non-condensing)
Ownership
Warranty
Lifetime*
Support
24/7 U.S. based support
